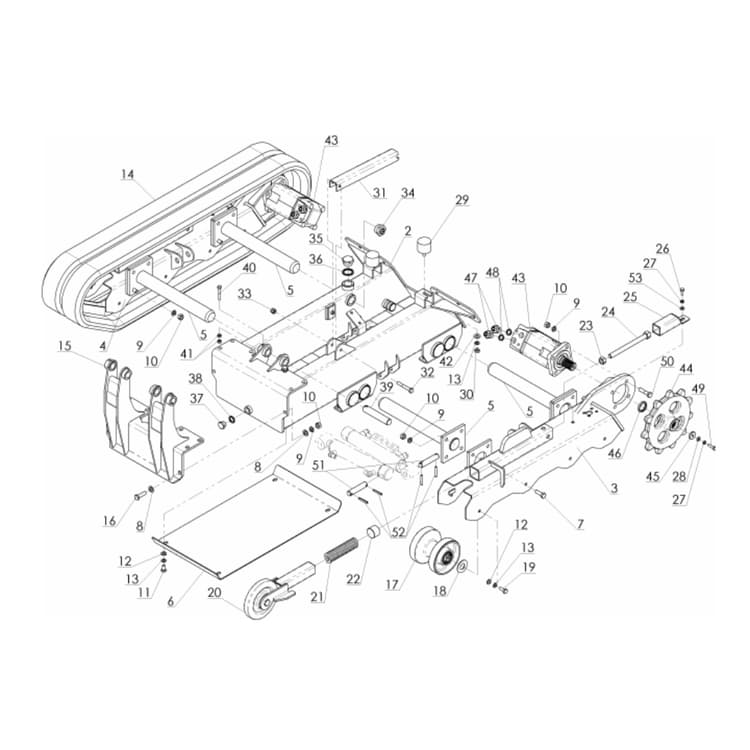

Spanner Assembly

Switch between sub-assemblies:

Total Price: $0.00

Spanner Assembly

1
3718MER Imer Lower Machine3718MER
2
3709MER Imer Frame Car Body3709MER
3
3710MER Imer Frame Crawler (R.H.)3710MER
4
3711MER Imer Frame Crawler (L.H.)3711MER
5
3712MER Imer Bracket3712MER
6
3744MER Imer Cover Under3744MER
7
3536MER Imer Bolt (H .T) Hex. M12X353536MER
8
3517MER Imer Washer Flat M123517MER
9
3521MER Imer Washer Spring M123521MER
10
3508MER Imer Nut M123508MER
$
20
01
Suggested: 32
11
2316MER Imer Bolt Hex. M10X202316MER
$
2
08
Suggested: 4
12
3515MER Imer Washer Flat M103515MER
$
3
16
Suggested: 20
13
3520MER Imer Washer Spring M103520MER
$
3
16
Suggested: 22
14

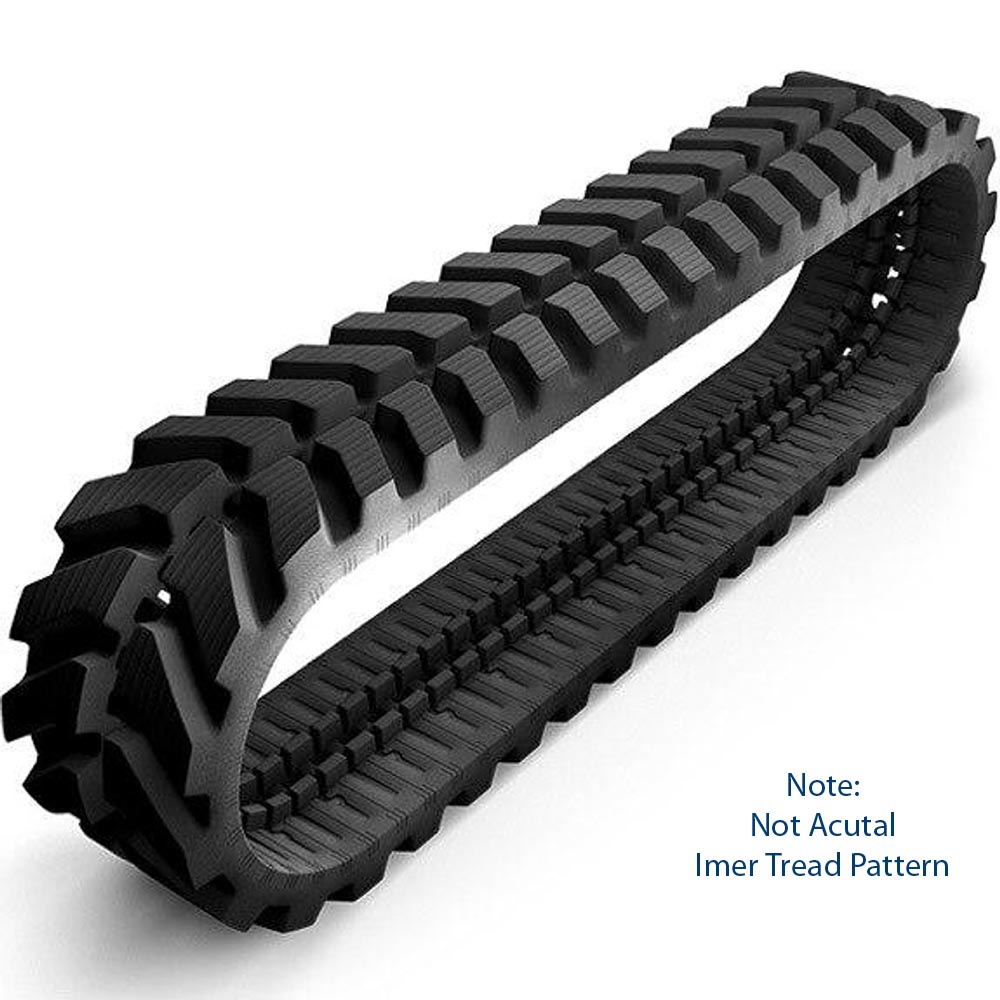

20571MER Imer Shoe Rubber Crawler W 18020571MER
$
962
14
Suggested: 2
14
20570MER Imer USA C107 RUBBER TRACK - SERIAL NUMBER SPECIFIC If your model ABOVE Serial# MC000686 Use Part# 119030000520570MER
$
962
14
Suggested: 2
15
3714MER Imer Bracket Tools Chassis3714MER
16
3502MER Imer Bolt (H.T.) H ex. M12X403502MER
17
1617MER Imer USA C107 WASHER1617MER
$
231
55
Suggested: 8
18
293MER Imer USA C107 WASHER293MER
$
10
53
Suggested: 16
19
3485MER Imer Bolt Hex. M10X253485MER
$
3
16
Suggested: 16
20
1808MER Imer USA C107 IDLER ASSY1808MER
$
714
11
Suggested: 1
20
1807MER Imer USA C107 IDLER ASSEMBLY1807MER
$
667
49
Suggested: 1
21
3569MER Imer Spring3569MER
$
124
14
Suggested: 2
22
3756MER Imer Pusher Spring3756MER
$
35
12
Suggested: 2
23
3510MER Imer Nut M163510MER
24
3719MER Imer Bolt Special M163719MER
$
57
09
Suggested: 2
25
3720MER Imer Bracket3720MER
26
3480MER Imer Bolt M8X203480MER
27
20578MER Imer Washer Spring M820578MER
$
3
91
Suggested: 4
28
20577MER Imer Washer Flat M820577MER
$
15
17
Suggested: 2
29
3665MER Imer Rubber S top3665MER
30
3507MER Imer Nut M103507MER
31
3674MER Imer Bracket3674MER
32
3488MER Imer Bolt Hex. M10X703488MER
33
2393MER Imer Nut Lock M102393MER
34
3473MER Imer Gauge Level3473MER
35
3618MER Imer Plug 13618MER
36
1962MER Imer Washer 11962MER
$
26
96
Suggested: 1
37
3465MER Imer Plug 1/23465MER
38
79MER Imer USA S300 SELF CENTURING RLR79MER
$
15
17
Suggested: 1
39
3762MER Imer Pin M8X553762MER
40
3484MER Imer Bolt Hex. M83484MER
$
3
91
Suggested: 1
41
3506MER Imer Nut M83506MER
$
3
91
Suggested: 2
42
3516MER Imer Washer Flat M103516MER
$
2
08
Suggested: 2
43
3626MER Imer Motor Ass'y Traction3626MER
$
1,281
22
Suggested: 2
43-1
3850MER Imer Kit Seal3850MER
$
340
92
Suggested: 2
44
1569MER Imer USA C107 SPROCKET1569MER
$
414
43
Suggested: 2
45
3673MER Imer Washer 3/83673MER
$
23
27
Suggested: 2
46
3745MER Imer Shim M8X303745MER
$
35
90
Suggested: 2
47
3471MER Imer Adapter 1/2 - 3/83471MER
48
2706MER Imer Washer Seal 3/82706MER
$
15
17
Suggested: 4
49
3483MER Imer Bolt M8X303483MER
$
3
91
Suggested: 2
50
3489MER Imer Bolt T reatment3489MER
51
3763MER Imer Pin3763MER
52
3527MER Imer Pin Spring 6X453527MER
53
3513MER Imer Washer Flat 1 M83513MER
