500G Blockhead Frame Parts

Switch between sub-assemblies:

Motor Assembly Parts
Frame Parts

Total Price: $0.00

500G Blockhead Frame Parts

This diagram updates automatically based on the selected sub-assembly. Try clicking a different one to see it change.

1
20951MER Imer USA SLIDING TRAY M350 NEWER20951MER
$
374
26
Suggested: 1
2
519MER Imer USA A9 HOSE CLAMP-M240 / M480519MER
$
24
42
Suggested: 1
3
20673MER Imer USA A4 SCREW-C300020673MER
$
17
96
Suggested: 1
4
20865MER Imer USA BEARING20865MER
$
24
42
Suggested: 1
5
20702MER Imer USA Lock Nut EA20702MER
$
17
96
Suggested: 1
6
2250MER Imer USA WHEEL ASSY (REPLACED BY 3207525)2250MER
$
71
22
Suggested: 1
7
20658MER Imer USA SCREW EA SP20658MER
$
17
96
Suggested: 1
8
1413MER Imer USA BAR FOR SAW1413MER
$
202
00
Suggested: 1
9
349MER Imer USA SELF ADHESIVE FOR SAW349MER
$
15
59
Suggested: 1
10
348MER Imer USA LABEL FENCE FOR SAW348MER
$
15
59
Suggested: 1
11
20874MER Imer USA RUBBER PAD M35020874MER
$
58
24
Suggested: 1
12
535MER Imer USA ROLLER FOR SAW535MER
$
24
42
Suggested: 1
13
568MER Imer USA B10 RUBBER STOP568MER
$
36
90
Suggested: 1
14
1572MER Imer USA M500 PEDAL PIPE1572MER
Discontinued
15
1826MER Imer USA ENDOTERMINC HEAD UNIT1826MER
Discontinued
16
920MER Imer USA SUPPORT FOR SAW920MER
$
71
07
Suggested: 1
17
20700MER Imer USA Lock Nut EA20700MER
$
17
96
Suggested: 1
18
846MER Imer USA Cap C3000 EA846MER
$
64
54
Suggested: 1
19
20683MER Imer USA M240 / 480 SCREW EA20683MER
$
17
96
Suggested: 1
20
836MER Imer USA SPRAY GUARD FOR SAW836MER
$
100
38
Suggested: 1
21
1863MER Imer USA M500 FRAME1863MER
$
1,236
69
Suggested: 1
22
1458MER Imer USA ADJUSTING ROD FOR M5001458MER
Discontinued
23
21066MER Imer USA HANDLE FOR SAW21066MER
$
133
70
Suggested: 1
24
21064MER Imer USA WATER PAN FOR SAW21064MER
$
509
68
Suggested: 1
25
20757MER Imer USA DRAIN PLUG EA20757MER
$
74
89
Suggested: 1
26
1801MER Imer USA PUMP M350 / 5001801MER
Discontinued
27
616MER Imer USA WATER FILTER M350616MER
$
41
37
Suggested: 1
28
1473MER Imer USA SHAFT MS500 ELECTRIC MOTOR ONLY1473MER
Discontinued
29
21184MER Imer USA SHAFT M500G GAS MOTOR ONLY21184MER
$
432
92
Suggested: 1
30
21162MER Imer USA NYLON BUSHING21162MER
$
20
96
Suggested: 1
31
20641MER Imer USA BOLT-M120 / M240 / C20020641MER
$
17
96
Suggested: 1
32
21185MER Imer USA M500 NUT 558921185MER
$
20
96
Suggested: 1
33
20950MER Imer USA LEVER Each20950MER
$
37
99
Suggested: 1
34
2310MER Imer Protractor2310MER
$
267
49
Suggested: 1
35
741MER Imer USA GUIDE BAR SUPPORT-M350741MER
Discontinued
36
20952MER Imer USA TROLLY SLIDE EACH20952MER
$
92
26
Suggested: 1
37
690MER Imer USA SUPPORT FOR SAW690MER
$
54
52
Suggested: 1
38
317MER Imer USA SCREW EA SP317MER
$
17
96
Suggested: 1
39
963MER Imer USA BAR Each963MER
Discontinued
40
551MER Imer USA HANDLE FOR SAW551MER
$
29
85
Suggested: 1
41
2311MER Imer Repair Part2311MER
$
51
10
Suggested: 1
42
20718MER Imer USA A9 WASHER-MM / M60 / C25020718MER
$
17
96
Suggested: 1
43
183MER Imer USA A6 NUT183MER
$
17
96
Suggested: 1
44
744MER Imer USA CAM Each744MER
$
92
12
Suggested: 1
45
153MER Imer USA A1 SCREW153MER
$
17
96
Suggested: 1
47
2312MER Imer Repair Part2312MER
$
62
41
Suggested: 1
48
1476MER Imer USA BUTTON FOR SAW1476MER
$
319
12
Suggested: 1
49
20814MER Imer USA HANDLE Grip20814MER
$
35
28
Suggested: 1
50
2258MER Imer USA BEARING (REPLACED BY 2204590)2258MER
$
9
90
Suggested: 1
51
21061MER Imer USA DISK COVER FOR MASON21061MER
$
509
68
Suggested: 1
52
21354MER Imer USA Seal C1000 / M350 / C3000 EA21354MER
$
17
52
Suggested: 1
53
1423MER Imer USA INNER ARBOR MASONRY 5001423MER
$
282
75
Suggested: 1
54
1472MER Imer USA OUTER ARBOR MASONRY 5001472MER
$
194
36
Suggested: 1
55
21063MER Imer USA HOSE FOR SAW21063MER
$
187
79
Suggested: 1
56
2270MER Imer USA Bearing2270MER
$
86
04
Suggested: 1
57
959MER Imer USA B11 PETCOCK959MER
$
119
17
Suggested: 1
58
1022MER Imer USA BLADE COVER FOR MASON1022MER
$
81
26
Suggested: 1
59
20642MER Imer USA BOLT-M120 / M240 / M480 / C3000 EA SP20642MER
$
17
96
Suggested: 1
60
352MER Imer USA NUT FOR SAW352MER
$
24
82
Suggested: 1
61
2313MER Imer Repair Part2313MER
$
47
38
Suggested: 1
62

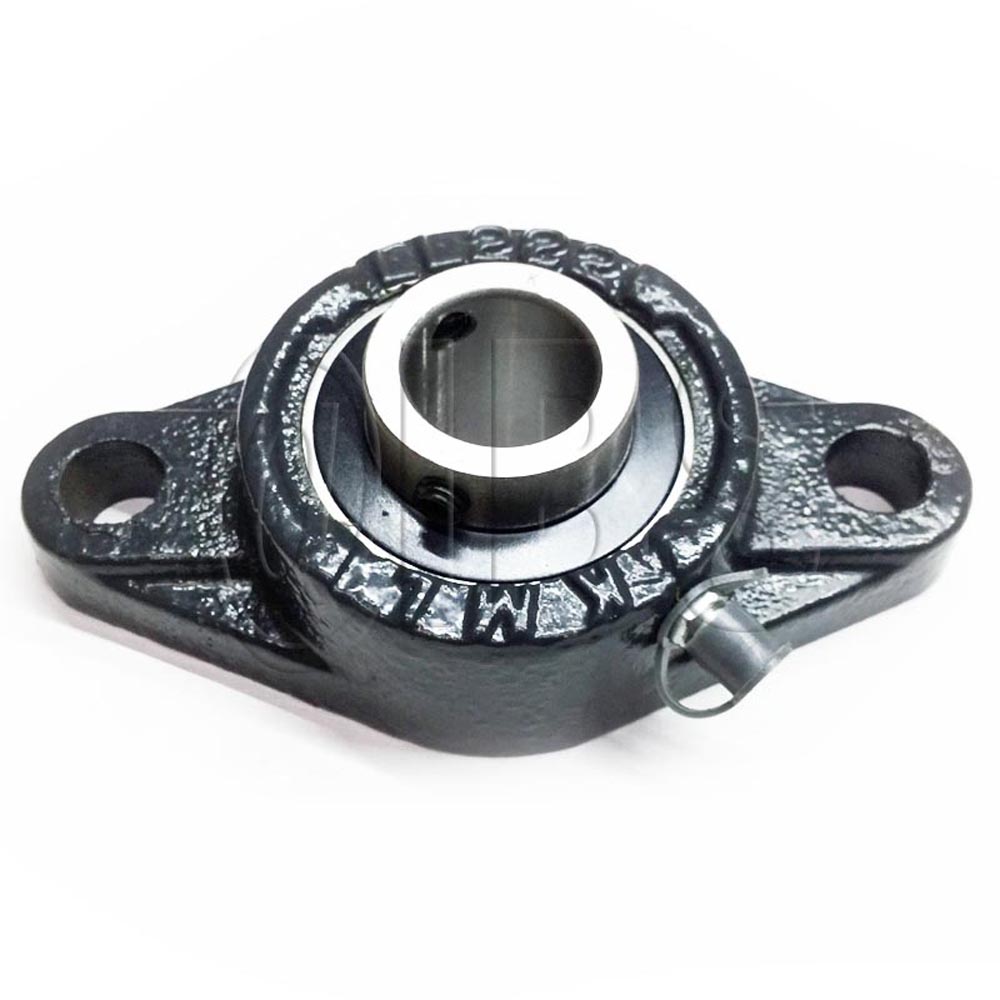

20612MER Imer USA PILLOW BLOCK EA20612MER
$
202
00
Suggested: 1
63
1004MER Imer USA PULLEY Each1004MER
$
204
91
Suggested: 1
64
709MER Imer USA CAP FOR SAW709MER
$
66
44
Suggested: 1
65
1428MER Imer USA BAR Each1428MER
$
179
02
Suggested: 1
66
947MER Imer USA SPRING FOR SAW947MER
Discontinued
67
798MER Imer USA CALLIPER Each798MER
$
68
51
Suggested: 1
68
832MER Imer USA PIN FOR SAW832MER
$
58
39
Suggested: 1
69
1190MER Imer USA SPRAY GUARD MASONRY1190MER
$
76
48
Suggested: 1
70
619MER Imer USA TIE ROD SCREW FOR619MER
$
37
99
Suggested: 1
71
670MER Imer USA PUMP PROTECTION EACH670MER
Discontinued
72
552MER Imer USA HOSE JOINT EACH552MER
$
29
85
Suggested: 1
73
906MER Imer USA TUBE Each906MER
$
64
43
Suggested: 1
74
20743MER Imer USA A11 SHIFT PIN20743MER
$
17
96
Suggested: 1
75
2314MER Imer Repair Part2314MER
$
17
96
Suggested: 1
76
475MER Imer USA CAP FOR SAW475MER
$
24
26
Suggested: 1
77
1174MER Imer USA PIN FOR SAW1174MER
$
113
12
Suggested: 1
78
769MER Imer USA PIN FOR SAW769MER
$
47
38
Suggested: 1
79
401MER Imer USA LOCKING PIN EACH401MER
$
21
71
Suggested: 1
80
2315MER Imer Repair Part2315MER
Discontinued
81
513MER Imer USA W250 NYLON BUSHIN513MER
$
20
96
Suggested: 1
82
20728MER Imer USA P SPLIT PIN20728MER
$
17
96
Suggested: 1
83
383MER Imer USA SPACER FOR SAW383MER
$
67
60
Suggested: 1
84
491MER Imer WIRED PIPE-MASONRY 500491MER
$
20
96
Suggested: 1
85
768MER Imer USA SPACE FOR SAW768MER
$
62
41
Suggested: 1
86
365MER Imer USA SCREW EA SP365MER
$
11
98
Suggested: 1
87
136MER Imer USA NUT FOR SAW136MER
$
17
96
Suggested: 1
88
20695MER Imer USA A7 Nut EA20695MER
$
17
96
Suggested: 1
89
298MER Imer USA CAP FOR SAW298MER
$
11
98
Suggested: 1
90
930MER Imer USA SEAL FOR SAW930MER
$
127
89
Suggested: 1
91
1171MER Imer USA M500 RT HD CUTTING1171MER
$
133
70
Suggested: 1
92
1170MER Imer USA M500 LEFT HAND CUTTING1170MER
$
133
70
Suggested: 1
