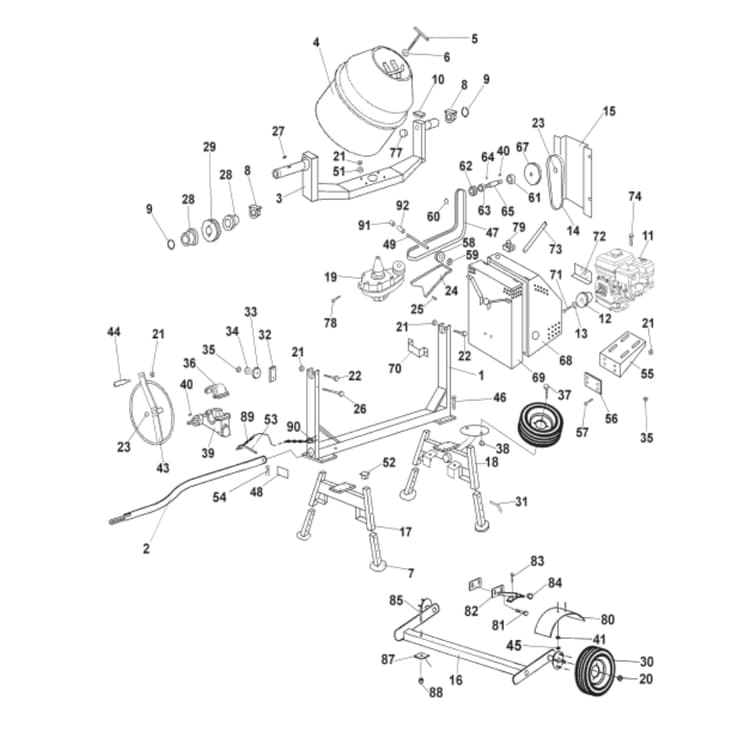

Workman 250G II Structure Parts

1
1561MER Imer USA MAIN FRAME1561MER
$
244
62
Suggested: 1
2
20996MER Imer USA TOW BAR WKMANII 25020996MER
$
574
06
Suggested: 1
3
1760MER Imer USA ARM Each1760MER
$
856
64
Suggested: 1
4
1842MER Imer USA DRUM COMPLETE1842MER
$
1,023
95
Suggested: 1
5
20908MER Imer USA LEVER Each20908MER
$
70
45
Suggested: 1
6
921MER Imer USA (REPLACED BY 3209949)921MER
$
38
41
Suggested: 1
7
2470MER Imer Repair Part2470MER
$
134
25
Suggested: 1
8
20969MER Imer USA BLOCK SUPPORT20969MER
$
37
51
Suggested: 1
9
20732MER Imer USA RING Each20732MER
$
15
17
Suggested: 1
10
20980MER Imer USA ARM CAP WM35020980MER
$
27
50
Suggested: 1
11
2447MER Honda 5.5hp Motor2447MER
$
1,104
47
Suggested: 1
11
8568MER Imer MOTOR8568MER
Discontinued
12
20990MER Imer USA PULLEY Each20990MER
$
61
19
Suggested: 1
13
20901MER Imer USA WASHER-C3000 EA SP20901MER
$
3
78
Suggested: 1
14
20628MER Imer Gas Motor Belt Workman II Series Mixer ONLY20628MER
$
102
64
Suggested: 1
15
2449MER Imer Motor Protection2449MER
$
144
68
Suggested: 1
16
1741MER Imer USA REAR LEG FRAME1741MER
$
703
63
Suggested: 1
19
20973MER Imer USA GEARBOX MIX EACH20973MER
$
810
06
Suggested: 1
20
20707MER Imer USA A7 NUT-W / 250 / M240 / M48020707MER
$
15
17
Suggested: 1
22
20660MER Imer USA SCREW EA SP20660MER
$
15
17
Suggested: 1
23
20739MER Imer USA CIRCLIP Each20739MER
$
15
17
Suggested: 1
24
873MER Imer USA CARTER BELT EACH873MER
$
95
86
Suggested: 1
25
20667MER Imer USA A3 Screw W250 M24020667MER
$
15
17
Suggested: 1
26
131MER Imer USA SCREW Each131MER
$
6
15
Suggested: 1
27
20966MER Imer USA PIN Each20966MER
$
3
34
Suggested: 1
28
20963MER Imer USA Bushing20963MER
$
37
55
Suggested: 1
29
20965MER Imer USA DUMP GEAR_WK 250 / 35020965MER
$
141
75
Suggested: 1
30
20631MER Imer USA WHEEL & TIRE W250 / WM350II20631MER
$
278
12
Suggested: 1
31
913MER ANCHOR PIN - Replaced By 3210638 AND 2227048913MER
Discontinued
32
522MER Imer USA SHOCK ABSORBER EACH522MER
$
24
88
Suggested: 1
33
20967MER Imer USA SHOCK ABSORBER20967MER
$
22
09
Suggested: 1
34
20713MER Imer USA A8 WASHER-C300020713MER
$
15
17
Suggested: 1
35
20700MER Imer USA Lock Nut EA20700MER
$
15
17
Suggested: 1
36
2275MER Imer USA CAP Each (REPLACED BY 3209429)2275MER
$
50
64
Suggested: 1
37
104MER Imer USA SCREW EA SP104MER
$
15
17
Suggested: 1
38
20701MER Imer USA Nut EA SP20701MER
$
15
17
Suggested: 1
39
21011MER Imer USA TILTING DRUM GEARBOX21011MER
$
409
11
Suggested: 1
40
20748MER Imer USA KEY EA SP20748MER
$
15
25
Suggested: 1
41
20711MER Imer USA WASHER-M120 / C3000 EA SP20711MER
$
15
17
Suggested: 1
42
20873MER Imer USA C2 CAP20873MER
$
33
38
Suggested: 1
43
2262MER Imer USA WM250 / 350 DUMP WHEEL (REPLACED BY 3228750)2262MER
$
253
22
Suggested: 1
44
20911MER Imer USA HANDGRIP W250 / W350 / W42020911MER
$
34
06
Suggested: 1
45
20702MER Imer USA Lock Nut EA20702MER
$
15
17
Suggested: 1
47
20981MER Imer Gear Box Belt 25020981MER
$
68
86
Suggested: 1
49
20971MER Imer USA SHAFT Each20971MER
$
38
98
Suggested: 1
51
20854MER Imer USA WASHER Each20854MER
$
15
17
Suggested: 1
52
20834MER Imer USA C7 CAPS20834MER
$
15
17
Suggested: 1
53
777MER Imer USA PIN WM250 II / TOW777MER
$
72
01
Suggested: 1
54
20728MER Imer USA P SPLIT PIN20728MER
$
15
17
Suggested: 1
55
6391MER Imer MOTOR SUPPORT6391MER
$
164
57
Suggested: 1
56
809MER Imer USA W250 PLATE809MER
$
39
37
Suggested: 1
57
20663MER Imer USA A3 Screw EA20663MER
$
15
17
Suggested: 1
58
20970MER Imer USA PULLEY Each20970MER
$
58
16
Suggested: 1
59
20601MER Imer USA BEARING20601MER
$
14
90
Suggested: 1
60
20579MER Imer USA Pulley Retainer Clip20579MER
$
15
17
Suggested: 1
61
20602MER Imer USA BEARING20602MER
$
25
08
Suggested: 1
62
20972MER Imer USA SERPANTINE PULLEY20972MER
$
84
84
Suggested: 1
63
20985MER Imer USA SPACER WM 250 / 35020985MER
$
19
88
Suggested: 1
64
20844MER Imer USA KEY WM350 II20844MER
$
15
17
Suggested: 1
65
20984MER Imer USA SHAFT Each20984MER
$
101
04
Suggested: 1
67
20983MER Imer USA ENGINE PULLEY EACH20983MER
$
126
46
Suggested: 1
68
2450MER Imer Repair Part2450MER
$
356
11
Suggested: 1
69
21364MER Imer Repair Part21364MER
$
222
59
Suggested: 1
70
620MER Imer USA SKIRT Each620MER
$
33
86
Suggested: 1
71
20639MER Imer USA BOLT-M240 / M480 EA SP20639MER
$
15
17
Suggested: 1
72
20989MER Imer Repair Part20989MER
$
39
55
Suggested: 1
73
521MER Imer USA LATCH ARM WM350521MER
$
32
36
Suggested: 1
74
20665MER Imer USA A3 BOLT-M48020665MER
$
3
78
Suggested: 1
77
2451MER Imer Repair Part2451MER
$
10
99
Suggested: 1
78
20659MER Imer USA Bolt M8x70 WH20659MER
$
15
17
Suggested: 1
79
20872MER Imer USA Switch EA SP20872MER
$
60
39
Suggested: 1
80
20888MER Imer USA WKM 250 / 350 / H4 FENDER -- DISCONTINUED Replaced by 3236443 Right Fender & 3235441 Left Fender20888MER
Discontinued
81
163MER Imer USA A3 BOLT-M240 / M480 / M350163MER
$
15
17
Suggested: 1
82
1201MER Imer USA W250 RIGHT FENDER ARM1201MER
$
277
66
Suggested: 1
83
20655MER Imer USA Arbor Bolt EA20655MER
$
7
50
Suggested: 1
84
244MER Imer USA B4 Plug244MER
$
15
17
Suggested: 1
85
20914MER Imer USA C6 Bolt WM 25020914MER
$
18
76
Suggested: 1
87
20915MER Imer USA SPACER WORKMAN 25020915MER
$
30
76
Suggested: 1
88
20706MER Imer USA A7 Lock Nut20706MER
$
15
17
Suggested: 1
89
1032MER Imer USA CHAIN EA SP1032MER
$
105
21
Suggested: 1
90
20822MER Imer USA SNAP HOOK-TOW CHAIN W25020822MER
$
31
27
Suggested: 1
91
2452MER Imer Repair Part2452MER
Discontinued
92
2453MER Imer Repair Part2453MER
Discontinued
