Mortarman 360 Drum Parts

Switch between sub-assemblies:

Total Price: $0.00

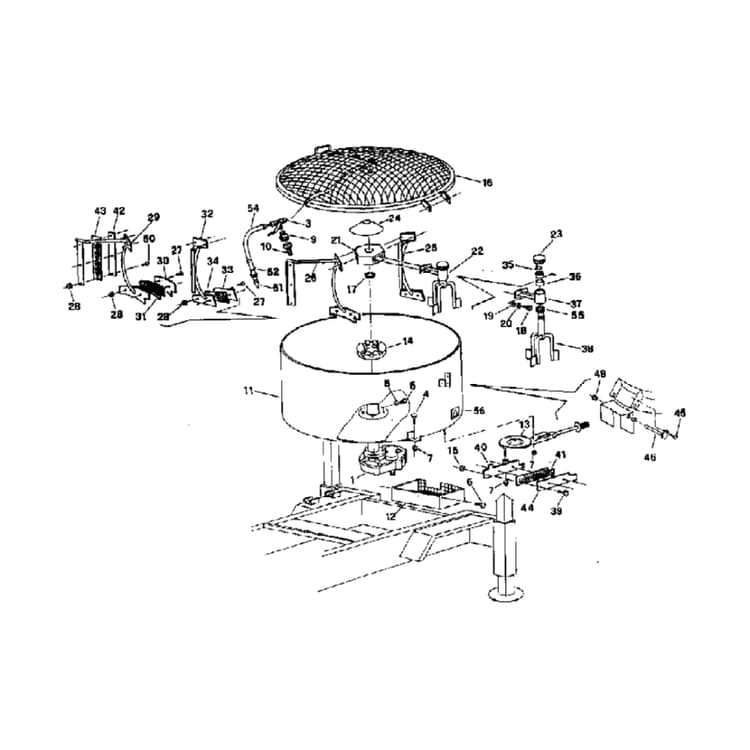

Mortarman 360 Drum Parts

1
1884MER Imer USA Gearbox Assy. M240 / 360 /1884MER
$
2,382
87
Suggested: 1
3
1210MER Imer USA B11 BALL COCK-M480 / 7501210MER
$
265
73
Suggested: 1
4
154MER Imer USA A2 BOLT-M240 / M480154MER
$
6
20
Suggested: 1
5
123MER Imer USA SCREW-M240 EA SP123MER
$
15
17
Suggested: 1
6
69MER Imer USA A2 SCREW-C250 / C300069MER
$
15
17
Suggested: 1
7
20701MER Imer USA Nut EA SP20701MER
$
15
17
Suggested: 1
8
20723MER Imer USA WASHER-M240 / M480 EA SP20723MER
$
15
17
Suggested: 1
9
509MER Imer USA B2 CONNECTOR FEMALE509MER
10
533MER Imer USA B2 CHICAGO FITTING533MER
$
53
33
Suggested: 1
11

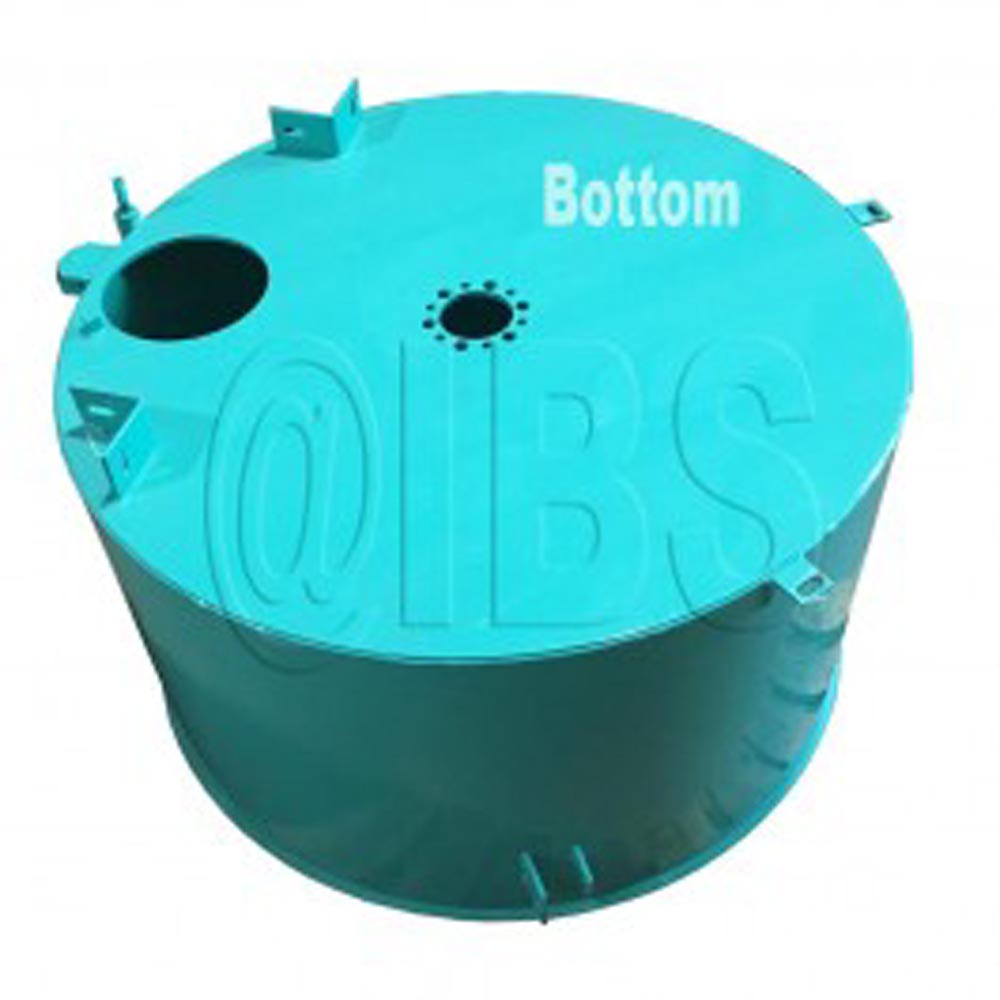

21106MER Imer USA 360 MORTARMAN DRUM21106MER
$
1,842
27
Suggested: 1
12
2496MER Imer Discharge Safety Grate2496MER
$
426
29
Suggested: 1
13
2497MER Imer DUMP GATE2497MER
$
1,044
63
Suggested: 1
14
20762MER Imer USA Shaft Support 240 / 48020762MER
$
158
25
Suggested: 1
15
20703MER Imer USA Nut EA SP20703MER
$
15
17
Suggested: 1
16
1870MER Imer USA DRUM SAFETY GRATE (REPLACED BY 3228545)1870MER
$
1,288
10
Suggested: 1
17
738MER Imer USA B7 SEAL-M240738MER
$
55
71
Suggested: 1
18
20680MER Imer USA M240 / 360 SCREW EA20680MER
$
15
17
Suggested: 1
19
20715MER Imer USA Washer EA SP20715MER
$
15
17
Suggested: 1
20
313MER Imer USA Washer EA SP313MER
$
15
17
Suggested: 1
21
1823MER Imer USA HUB PADDLE ARM1823MER
$
635
34
Suggested: 1
22
21107MER Imer USA MIXING BLADE21107MER
$
787
16
Suggested: 1
23
20796MER Imer USA PLASTIC CAP EA20796MER
$
18
76
Suggested: 1
24
1439MER Imer USA PROTECTION Each1439MER
$
210
44
Suggested: 1
25
20777MER Imer USA MM 360 INNER PADDLE20777MER
$
359
37
Suggested: 1
26
21108MER Imer USA OUTER PADDLE COMPLETE21108MER
$
655
38
Suggested: 1
27
20684MER Imer USA Allen Bolt EA20684MER
$
11
78
Suggested: 1
28
20696MER Imer USA NUT EA SP20696MER
$
15
17
Suggested: 1
29
2498MER Imer Repair Part2498MER
Discontinued
30
2255MER Imer USA M360 COVER PLATE (REPLACED BY 2294771)2255MER
$
65
70
Suggested: 1
31
20779MER Imer USA Paddle Rubber M24020779MER
$
67
44
Suggested: 1
32
2499MER Imer Repair Part2499MER
$
341
78
Suggested: 1
33
20826MER Imer USA Cover Plate M24020826MER
$
36
31
Suggested: 1
34
20780MER Imer USA Paddle Rubber M24020780MER
$
76
88
Suggested: 1
35
20733MER Imer USA A10 CIRCLIP20733MER
$
15
17
Suggested: 1
36
20607MER Imer USA B5 BEARING20607MER
$
43
22
Suggested: 1
37
2500MER Imer Repair Part2500MER
$
343
45
Suggested: 1
38
2501MER Imer Repair Part2501MER
$
787
16
Suggested: 1
39
20648MER Imer USA A1 Bolt EA20648MER
$
15
17
Suggested: 1
40
20789MER Imer USA DUMP GATE ACCESS20789MER
$
47
39
Suggested: 1
41
20768MER Imer USA RUBBER 240 EA20768MER
$
67
44
Suggested: 1
42
21109MER Imer USA Wiper Plate Mortarman 36021109MER
$
52
01
Suggested: 1
43
21110MER Imer USA RUBBER / MN Each21110MER
$
111
48
Suggested: 1
44
20790MER Imer USA PLATE Each20790MER
$
6
86
Suggested: 1
45
20641MER Imer USA BOLT-M120 / M240 / C20020641MER
$
15
17
Suggested: 1
46
20583MER Imer USA B1 Pivot Shaft M120 / 36020583MER
$
74
48
Suggested: 1
47
1200MER Imer USA B9 COLLAR-M120 / M2401200MER
$
130
15
Suggested: 1
48
263MER Imer USA A9 SET SCREW-M120 / M240263MER
$
20
28
Suggested: 1
49
20627MER Imer USA Nylon Bushing M120-48020627MER
$
27
15
Suggested: 1
50
20686MER Imer USA BOLT-M240 / M480 EA SP20686MER
$
15
17
Suggested: 1
51
795MER Imer USA NOZZLE Each795MER
$
99
41
Suggested: 1
52
519MER Imer USA A9 HOSE CLAMP-M240 / M480519MER
$
20
56
Suggested: 1
53
532MER Imer USA B2 NIPPLE532MER
$
19
74
Suggested: 1
54
555MER Imer USA TUBE Each555MER
$
39
04
Suggested: 1
55
1470MER Imer USA STOP RING1470MER
$
146
38
Suggested: 1
56
279MER Imer USA NAME PLATE M120 / M240279MER
Discontinued
