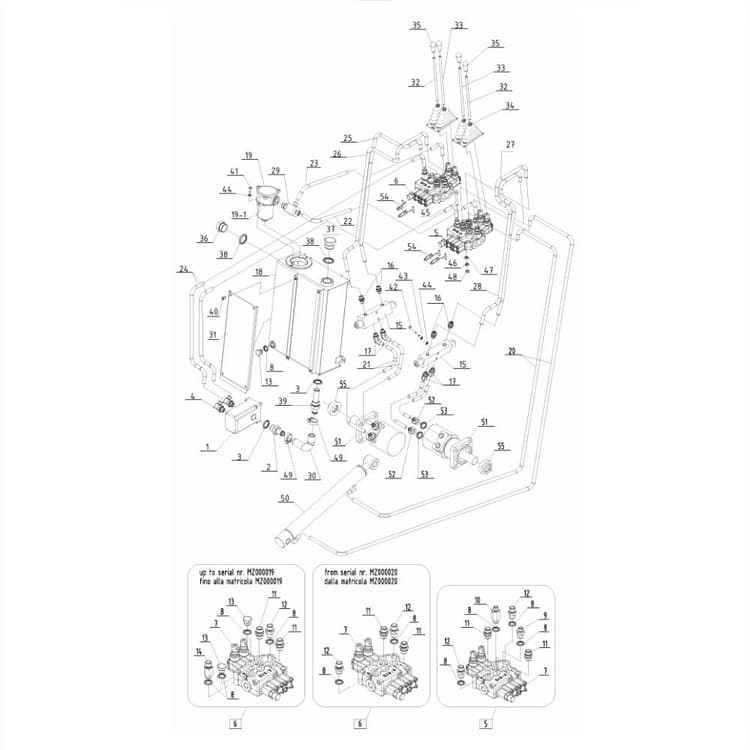

Carry 105 Electric Transporter Hydraulic Piping

Switch between sub-assemblies:

Total Price: $0.00

Carry 105 Electric Transporter Hydraulic Piping

0
20256MER Imer Traction Valve Assy20256MER
0
20259MER Imer Pump Assy20259MER
0
20258MER Imer Piping Assy20258MER
1
20107MER Imer Pump20107MER
2
20101MER Imer Connector20101MER
3
3466MER Imer Washer Seal 3/43466MER
$
15
57
Suggested: 3
4
3614MER Imer Connector 3/83614MER
5
3825MER Imer Piping Ass 'y (Spanner)3825MER
6
3826MER Imer Control Valve Ass'y (Basis) Sh.No.3-13826MER
7
20109MER Imer Valve Assy Control20109MER
8
2706MER Imer Washer Seal 3/82706MER
$
15
17
Suggested: 9
10
3619MER Imer Adapter PF3/8 XPF1/43619MER
11
3474MER Imer Adapter PF3/83474MER
12
3470MER Imer Adapter 3/83470MER
12
3472MER Imer Adapter3472MER
$
35
82
Suggested: 3
13
437MER Imer USA S50 THREADED PLUG437MER
$
14
90
Suggested: 3
14
3620MER Imer Adapter3620MER
15
11833MER Imer USA Valve and Below Tubes11833MER
$
559
20
Suggested: 2
16
20096MER Imer Nipple + Seal20096MER
$
22
68
Suggested: 4
17
20097MER Imer Adapter20097MER
18
20184MER Imer Oil Tank20184MER
19
20108MER Imer Oil Filter20108MER
19-1
20436MER Imer Cartridge20436MER
$
102
17
Suggested: 1
20
20089MER Imer Hose Assy20089MER
21
20090MER Imer Hose Assy20090MER
22
20093MER Imer Hose Assy20093MER
23
20094MER Imer Hose Assy20094MER
24
20095MER Imer Hose Assy20095MER
25
20231MER Imer Tube20231MER
$
104
34
Suggested: 1
26
20232MER Imer Tube20232MER
27
20233MER Imer Tube20233MER
28
20234MER Imer Tube20234MER
29
20206MER Imer Manifold20206MER
30
20230MER Imer Hose20230MER
31
20164MER Imer Cover20164MER
32
3751MER Imer Lever L=2103751MER
33
3752MER Imer Lever (Long) L=2353752MER
34
3664MER Imer Boot3664MER
35
3660MER Imer Grip3660MER
36
3473MER Imer Gauge Level3473MER
37
3618MER Imer Plug 13618MER
38
1962MER Imer Washer 11962MER
$
26
96
Suggested: 2
39
20102MER Imer Connector20102MER
40
20271MER Imer Bolt20271MER
41
3477MER Imer Bolt M6X163477MER
42
2289MER Imer Bolt M6X502289MER
Discontinued
43
3519MER Imer Washer Spring M63519MER
44
3511MER Imer Washer Flat M63511MER
45
66MER Imer USA SCREW FOR SAW66MER
$
15
17
Suggested: 6
46
20578MER Imer Washer Spring M820578MER
$
3
91
Suggested: 6
47
20577MER Imer Washer Flat M820577MER
$
15
17
Suggested: 6
48
3506MER Imer Nut M83506MER
$
3
91
Suggested: 6
49
20153MER Imer Clamp, Tube20153MER
50
20240MER Imer Cylinder Assy, Tilting20240MER
50
20228MER Imer Cylinder Assy, Tilting20228MER
50-1
20439MER Imer Kit, Seal20439MER
50-1
20441MER Imer Kit, Seal20441MER
51
20103MER Imer Motor Assy, Traction20103MER
51
20104MER Imer Motor Assy, Traction20104MER
$
951
96
Suggested: 2
52
20144MER Imer Nipple20144MER
53
79MER Imer USA S300 SELF CENTURING RLR79MER
$
15
17
Suggested: 4
54
20123MER Imer Microswitch20123MER
55
20437MER Imer Sealing Kit20437MER
$
224
51
Suggested: 2
55
20438MER Imer Kit, Seal20438MER
