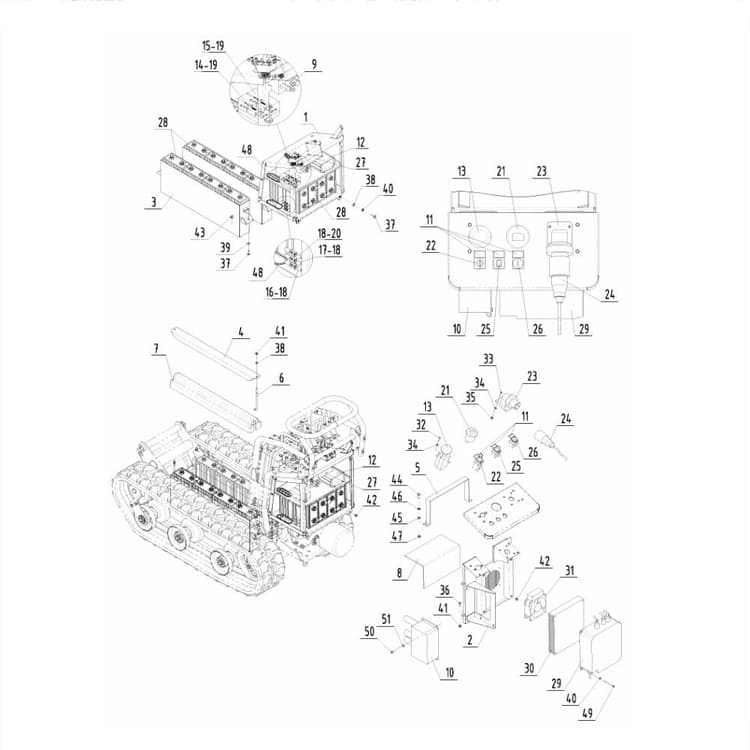

Carry 105 Electric Transporter Electric System 2
Total Price: $0.00
This diagram updates automatically based on the selected sub-assembly. Try clicking a different one to see it change.
- 3
20195MER Imer Batteries Boxes20195MER - 420161MER Imer Batteries Bracket20161MER
- 520167MER Imer Batteries Bracket20167MER
- 620217MER Imer Batteries Tie Rod20217MER
- 720246MER Imer Batteries Cover20246MER
- 920110MER Imer Contactor20110MER
- 1020111MER Imer Equalizer Bms20111MER
- 1120112MER Imer Plate Support20112MER
- 1220113MER Imer Circuit Board20113MER
- Suggested: 1
- 1420116MER Imer Fuse20116MER
- 1520117MER Imer Fuse20117MER
- 1620118MER Imer Fuse20118MER
- 1720120MER Imer Fuse20120MER
- 1820119MER Imer Fuse Box20119MER
- 1920121MER Imer Fuse Box20121MER
- 2020122MER Imer Fuse20122MER
- 2120124MER Imer Display20124MER
- 2220125MER Imer Key Switch20125MER
- Suggested: 1
- Suggested: 1
- 2520127MER Imer Speed Selector20127MER
- 2620128MER Imer Start Button20128MER
- 2720129MER Imer Contro Ller20129MER
- Suggested: 12
- Suggested: 1
- 3020136MER Imer Dissipa Tor20136MER
- 3120137MER Imer Fan20137MER
- 3220064MER Imer Bolt20064MER
- 3320427MER Imer Bolt20427MER
- 3420423MER Imer Washer, Flat20423MER
- Suggested: 4
- 363477MER Imer Bolt M6X163477MER
- 3720145MER Imer Bolt20145MER
- Discontinued
- 4220066MER Imer Thread Ed Insert20066MER
- 4320065MER Imer Nut20065MER
- 443548MER Imer Bolt M8X203548MER
- Suggested: 2
- Suggested: 2
- Suggested: 2
- 4820140MER Imer Fairlead20140MER
- 493494MER Imer Bolt M6x603494MER
- 5020151MER Imer Bolt20151MER
- 5120152MER Imer Washer, Flat20152MER
