Syntesi 250 Machine Structure

Switch between sub-assemblies:

Total Price: $0.00

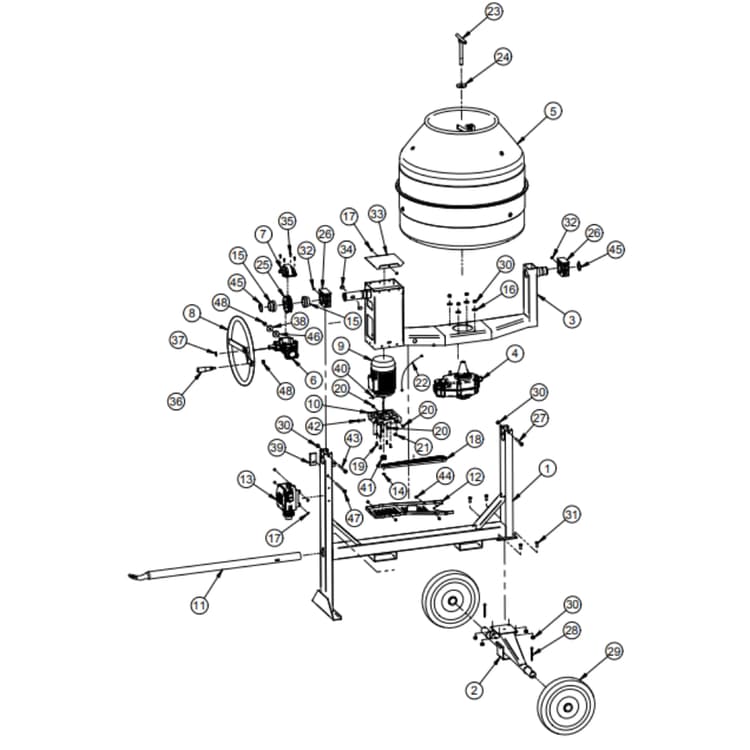

Syntesi 250 Machine Structure

This diagram updates automatically based on the selected sub-assembly. Try clicking a different one to see it change.

1
7366MER Imer CRADLE7366MER
$
917
87
Suggested: 1
2
6652MER Imer Repair Part6652MER
$
231
13
Suggested: 1
2
6719MER Imer Repair Part6719MER
$
229
95
Suggested: 1
3
7292MER Imer Arm7292MER
$
719
29
Suggested: 1
4
8825MER Imer REDUCTION GEAR/CONC.MIXER8825MER
$
1,112
03
Suggested: 1
4
7349MER Imer Reduction gear7349MER
$
868
22
Suggested: 1
5
1842MER Imer USA DRUM COMPLETE1842MER
$
1,149
43
Suggested: 1
5
7394MER Imer TANK7394MER
$
1,066
80
Suggested: 1
6
21011MER Imer USA TILTING DRUM GEARBOX21011MER
$
420
01
Suggested: 1
7
21002MER Imer USA CAP Each21002MER
$
59
92
Suggested: 1
8
1469MER Imer USA WM250 / 350 DUMP WHEEL1469MER
$
239
01
Suggested: 1
9
7202MER Imer MOTOR KW1 SY190.250 230/240V507202MER
$
592
42
Suggested: 1
9
8559MER Imer MOTOR8559MER
Discontinued
9
20045MER Imer Motor20045MER
9
7330MER Imer MOTOR7330MER
$
836
23
Suggested: 1
10
5790MER Imer SUPPORT5790MER
$
91
72
Suggested: 1
11
6196MER Imer Repair Part6196MER
$
136
61
Suggested: 1
12
5571MER Imer Guard5571MER
$
64
43
Suggested: 1
13
6841MER Imer Repair Part6841MER
$
304
44
Suggested: 1
13
6723MER Imer Repair Part6723MER
$
231
54
Suggested: 1
13
20046MER Imer Electric Panel20046MER
14
1974MER Imer Stop ring1974MER
$
17
96
Suggested: 1
15
20963MER Imer USA Bushing20963MER
$
38
94
Suggested: 1
16
20854MER Imer USA WASHER Each20854MER
$
17
96
Suggested: 1
17
5033MER Imer Repair Part5033MER
$
15
09
Suggested: 1
18
20968MER Imer USA BELT / TD-10 Each20968MER
$
71
07
Suggested: 1
19
20641MER Imer USA BOLT-M120 / M240 / C20020641MER
$
17
96
Suggested: 1
20
330MER Imer USA BOLT Each330MER
$
17
96
Suggested: 1
21
20694MER Imer USA A6 Nut EA20694MER
$
17
96
Suggested: 1
22
20047MER Imer Cable Ground20047MER
23
20908MER Imer USA LEVER Each20908MER
$
71
07
Suggested: 1
24
20923MER Imer USA WASHER Each20923MER
$
36
77
Suggested: 1
25
20965MER Imer USA DUMP GEAR_WK 250 / 35020965MER
$
170
03
Suggested: 1
26
20969MER Imer USA BLOCK SUPPORT20969MER
$
43
80
Suggested: 1
27
20660MER Imer USA SCREW EA SP20660MER
$
17
96
Suggested: 1
28
20728MER Imer USA P SPLIT PIN20728MER
$
17
96
Suggested: 1
28
5107MER Imer SPLIT PIN5107MER
$
17
96
Suggested: 1
29
20629MER Imer USA D3 WHEEL-M12020629MER
$
65
87
Suggested: 1
29
5880MER Imer WHEELS5880MER
$
89
22
Suggested: 1
30
20702MER Imer USA Lock Nut EA20702MER
$
17
96
Suggested: 1
31
20655MER Imer USA Arbor Bolt EA20655MER
$
17
96
Suggested: 1
32
5072MER Imer Grease nipple5072MER
$
17
96
Suggested: 1
33
5474MER Imer Repair Part5474MER
$
49
91
Suggested: 1
34
20966MER Imer USA PIN Each20966MER
$
17
96
Suggested: 1
35
5092MER Imer SCREW5092MER
$
17
96
Suggested: 1
36
20911MER Imer USA HANDGRIP W250 / W350 / W42020911MER
$
36
43
Suggested: 1
37
4859MER Imer Repair Part4859MER
38
20713MER Imer USA A8 WASHER-C300020713MER
$
17
96
Suggested: 1
39
688MER Imer USA SHOCK ABSORBER EACH688MER
$
49
53
Suggested: 1
40
5051MER Imer Repair Part5051MER
$
17
96
Suggested: 1
41
2004MER Imer PULLEY2004MER
$
78
07
Suggested: 1
42
20665MER Imer USA A3 BOLT-M48020665MER
$
17
96
Suggested: 1
43
393MER Imer USA WM250 BOLT393MER
$
17
96
Suggested: 1
44
21227MER Imer USA C250 / 1000 BOLT21227MER
$
17
96
Suggested: 1
45
20732MER Imer USA RING Each20732MER
$
17
96
Suggested: 1
46
20967MER Imer USA SHOCK ABSORBER20967MER
$
23
88
Suggested: 1
47
5144MER Imer SCREW5144MER
$
17
96
Suggested: 1
48
20700MER Imer USA Lock Nut EA20700MER
$
17
96
Suggested: 1
