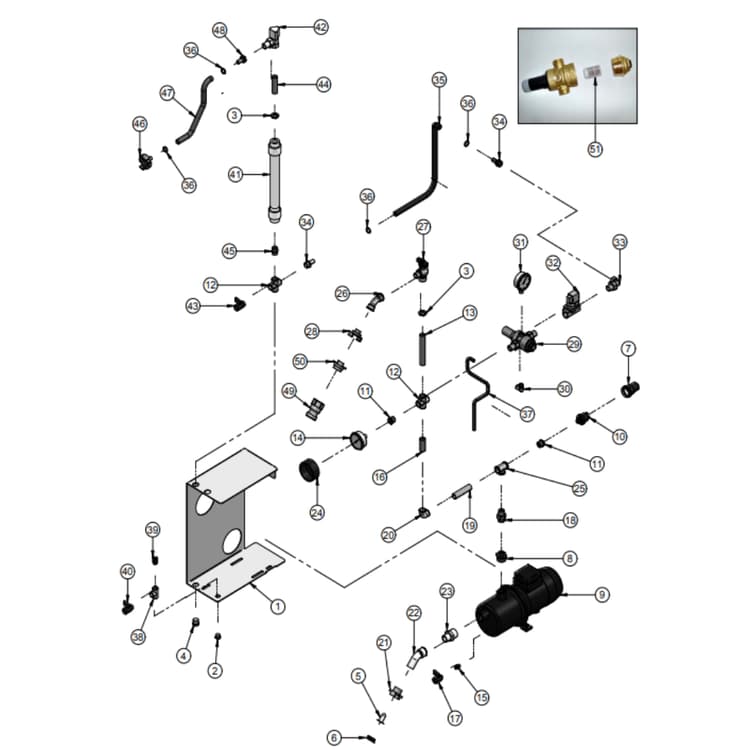

KOINE-4 Water Circuit

Switch between sub-assemblies:

Total Price: $0.00

This diagram updates automatically based on the selected sub-assembly. Try clicking a different one to see it change.

1
6356MER Imer PUMP PROTECTION6356MER
$
165
67
Suggested: 1
2
2987MER Imer Repair Part2987MER
$
21
71
Suggested: 1
3
2565MER Imer FLANGED RINGHUT2565MER
$
24
42
Suggested: 1
4
4091MER Imer Plug4091MER
$
21
71
Suggested: 1
5
727MER Imer USA S300 WATER FILTER727MER
$
43
80
Suggested: 1
6
375MER Imer USA S50 / S300 GASKET375MER
$
17
96
Suggested: 1
7
4160MER Imer Pressure Switch Cap4160MER
$
25
76
Suggested: 1
8
5557MER Imer NIPPLE5557MER
$
66
44
Suggested: 1
9
7347MER Imer CALPEDA PUMP7347MER
$
1,636
05
Suggested: 1
9
4286MER Imer Calpeda Pump4286MER
$
1,205
80
Suggested: 1
10
21186MER Imer USA S50 / S300 PRESSURE SWITCH21186MER
$
35
04
Suggested: 1
11
518MER Imer USA S50 REDUCER 40180 -518MER
$
24
42
Suggested: 1
12
5840MER Imer CONNECTOR5840MER
$
100
79
Suggested: 1
13
4092MER Imer Branch Fitting4092MER
$
110
45
Suggested: 1
14
1075MER Imer USA S300 PRESSURE GAUGE1075MER
$
137
47
Suggested: 1
15
2032MER Imer NIPPLE2032MER
$
97
19
Suggested: 1
16
2711MER Imer Repair Part2711MER
$
60
29
Suggested: 1
17
4094MER Imer Valve4094MER
$
55
99
Suggested: 1
18
686MER Imer USA SMALL 50 PIPE UNION686MER
$
65
87
Suggested: 1
19
2722MER Imer Repair Part2722MER
$
76
48
Suggested: 1
20
2522MER Imer ELBOW FITTING2522MER
$
51
68
Suggested: 1
21
4101MER Imer Hose Coupling4101MER
$
47
38
Suggested: 1
22
5559MER Imer 45Ã¢â‚¬Å¡ÃƒÂ±ÃƒÂ« BEND5559MER
$
66
44
Suggested: 1
23
5395MER Imer NIPPLE5395MER
$
43
80
Suggested: 1
24
5615MER Imer RUBBER COVER5615MER
$
62
40
Suggested: 1
25
2712MER Imer Connector2712MER
$
60
29
Suggested: 1
26
2719MER Imer BEND2719MER
$
58
39
Suggested: 1
27
2754MER Imer Valve2754MER
$
142
42
Suggested: 1
28
21191MER IMER USA Geka Coupling w/Male Thread21191MER
$
47
38
Suggested: 1
30
5623MER Imer CONNECTOR5623MER
$
64
13
Suggested: 1
31
2025MER Imer PRESSURE GAUGE2025MER
$
73
29
Suggested: 1
32
4099MER Imer Solenoid Valve4099MER
$
193
28
Suggested: 1
33
2713MER Imer ELBOW FITTING2713MER
$
71
07
Suggested: 1
34
530MER Imer USA S50 HOSE CLAMP530MER
$
41
37
Suggested: 1
35
5535MER Imer WATER HOSE5535MER
$
58
39
Suggested: 1
36
5159MER Imer RING CLIP5159MER
$
13
51
Suggested: 1
37
20581MER Imer USA SMALL 50 TUBE20581MER
$
49
53
Suggested: 1
38
2977MER Imer Repair Part2977MER
$
51
68
Suggested: 1
39
5445MER Imer CONNECTOR5445MER
$
47
38
Suggested: 1
40
4095MER Imer Valve4095MER
$
51
68
Suggested: 1
41
7096MER Imer FLOW METER7096MER
$
459
90
Suggested: 1
42
4097MER Imer Valve4097MER
$
290
96
Suggested: 1
43
4096MER Imer Valve4096MER
$
60
29
Suggested: 1
44
2566MER Imer Repair Part2566MER
$
71
07
Suggested: 1
45
3051MER Imer Repair Part3051MER
$
25
97
Suggested: 1
46
658MER Imer USA SMALL 50 RAPID CONNECTION658MER
$
29
85
Suggested: 1
47
5444MER Imer Repair Part5444MER
$
47
38
Suggested: 1
48
4109MER Imer HOSE FITTING4109MER
$
46
24
Suggested: 1
49
1212MER Imer USA SMALL 50 FIXATION1212MER
$
126
91
Suggested: 1
50
657MER Imer USA S300 MALE QUICK COUPLING657MER
$
47
38
Suggested: 1
51
4098MER Imer RID.DI PRESS.1/2'1.5BAR PN25+FLTR4098MER
$
394
20
Suggested: 1
