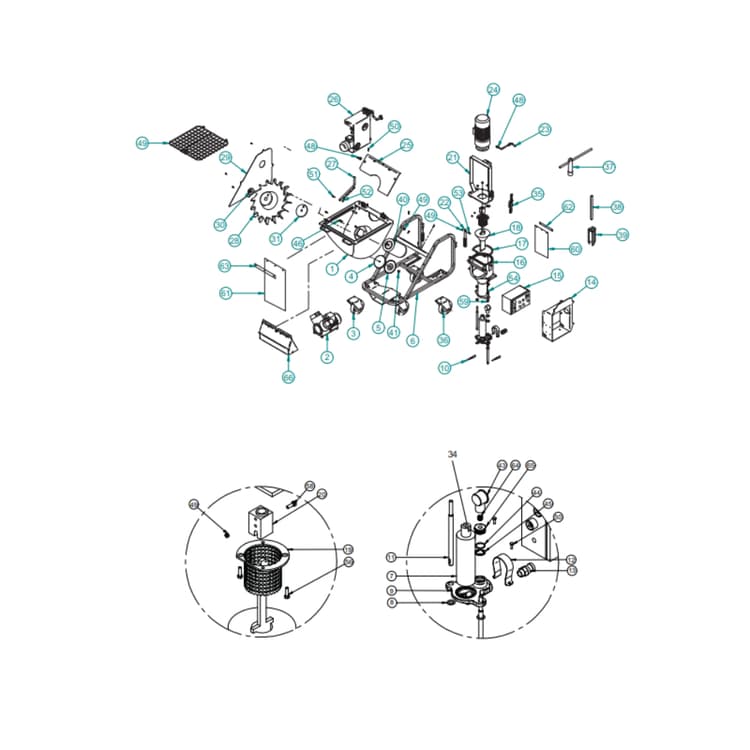

KOINE-35 Machine Structure

Switch between sub-assemblies:

Total Price: $0.00

This diagram updates automatically based on the selected sub-assembly. Try clicking a different one to see it change.

1
20276MER Imer Koine 4 Hopper20276MER
2
7569MER Imer Repair Part7569MER
$
3,117
17
Suggested: 1
3
6713MER Imer Repair Part6713MER
$
219
39
Suggested: 1
4
5747MER Imer DUST OUTLET DOOR SEAL5747MER
$
70
11
Suggested: 1
5
5992MER Imer PLUG5992MER
$
113
12
Suggested: 1
6
7476MER Imer FRAME7476MER
$
1,361
35
Suggested: 1
7
1929MER Imer Small 50 Stator (Yellow Out)1929MER
$
392
70
Suggested: 1
7
1933MER IMER USA 2.5 Stator Repair Part1933MER
$
297
50
Suggested: 1
8
195MER Imer USA A9 WASHER-M480195MER
$
17
96
Suggested: 1
9
4089MER Imer Manifold4089MER
$
580
86
Suggested: 1
10
12495MER Imer USA USE 3224955 EXTRACTOR12495MER
$
109
94
Suggested: 1
11
4104MER Imer Tie-Rod4104MER
$
156
95
Suggested: 1
12
3461MER Imer Guard3461MER
$
67
60
Suggested: 1
13
4102MER Imer Cam Coupling - Male to Male4102MER
$
149
68
Suggested: 1
14
20298MER Imer Guard20298MER
15
7596MER Imer Repair Part7596MER
$
4,533
83
Suggested: 1
16
5007MER Imer MIXING CHAMBER5007MER
$
1,301
85
Suggested: 1
17
2033MER Imer S50TP SEAL2033MER
$
21
71
Suggested: 1
18
20552MER Koine Mixing Paddle20552MER
$
251
30
Suggested: 1
19
6007MER Imer Repair Part6007MER
$
127
17
Suggested: 1
20
4086MER Imer Terminal4086MER
$
211
43
Suggested: 1
21
7228MER Imer Repair Part7228MER
$
622
21
Suggested: 1
22
4103MER Imer Handle for pump4103MER
$
86
04
Suggested: 1
23
4087MER Imer Chamber Pin4087MER
$
206
36
Suggested: 1
24
20313MER Imer Mixer Gearmotor20313MER
25
12528MER Imer USA Repair Part12528MER
$
98
78
Suggested: 1
26
20299MER Imer Water Circuit20299MER
27
8501MER Imer LOCKING HANDLE8501MER
Discontinued
28
7367MER Imer CELL WHEEL7367MER
$
918
97
Suggested: 1
29
6170MER Imer Repair Part6170MER
$
142
42
Suggested: 1
30
4088MER Imer Flange4088MER
$
193
05
Suggested: 1
31
6975MER Imer WHEEL SUPPORT6975MER
$
383
64
Suggested: 1
34
1934MER Imer USA 2.5 Rotor Repair Part1934MER
$
335
50
Suggested: 1
34
1930MER Imer Small 50 Rotor (Yellow In)1930MER
$
392
70
Suggested: 1
35
6840MER Imer Repair Part6840MER
$
274
53
Suggested: 1
36
6929MER Imer Repair Part6929MER
$
329
67
Suggested: 1
37
6361MER Imer WRENCH6361MER
$
177
30
Suggested: 1
38
4084MER Imer Vertical Section4084MER
$
199
61
Suggested: 1
39
4085MER Imer Scrapper4085MER
$
140
97
Suggested: 1
40
7382MER Imer Repair Part7382MER
$
980
75
Suggested: 1
41
5327MER Imer Repair Part5327MER
$
35
28
Suggested: 1
42
4090MER Imer Rubber4090MER
$
58
24
Suggested: 1
43
21187MER Imer USA S50 / S300 MANOMETER21187MER
$
154
04
Suggested: 1
44
5534MER Imer SPACER5534MER
$
58
39
Suggested: 1
45
730MER Imer USA S50 / 300 MANOMETER MEMBRAN730MER
$
58
39
Suggested: 1
46
20277MER Imer Screw 8X50 Ttcq Z20277MER
47
5037MER Imer Repair Part5037MER
$
17
96
Suggested: 1
48
20728MER Imer USA P SPLIT PIN20728MER
$
17
96
Suggested: 1
49
12496MER Imer USA KOINE 4 MESH12496MER
$
536
16
Suggested: 1
50
20655MER Imer USA Arbor Bolt EA20655MER
$
17
96
Suggested: 1
51
314MER Imer USA SCREW Each314MER
$
8
98
Suggested: 1
52
20700MER Imer USA Lock Nut EA20700MER
$
17
96
Suggested: 1
53
20279MER Imer Screw20279MER
54
5014MER Imer Repair Part5014MER
$
11
98
Suggested: 1
55
3926MER Imer Screw3926MER
$
17
96
Suggested: 1
56
20657MER Imer USA BOLT-M240 EA SP20657MER
$
17
96
Suggested: 1
57
318MER Imer USA TD 10 BOLT318MER
$
17
96
Suggested: 1
58
5016MER Imer Repair Part5016MER
$
17
96
Suggested: 1
59
20694MER Imer USA A6 Nut EA20694MER
$
17
96
Suggested: 1
60
5849MER Imer REAR APRON5849MER
$
81
26
Suggested: 1
61
8370MER Imer FRONT APRON8370MER
Discontinued
62
20280MER Imer Rear Apron Sheet20280MER
63
20281MER Imer Front Apron Sheet20281MER
64
518MER Imer USA S50 REDUCER 40180 -518MER
$
24
42
Suggested: 1
65
1116MER Imer USA S120 REDUCTION1116MER
$
119
09
Suggested: 1
66
12618MER Imer USA KIT12618MER
$
315
60
Suggested: 1
