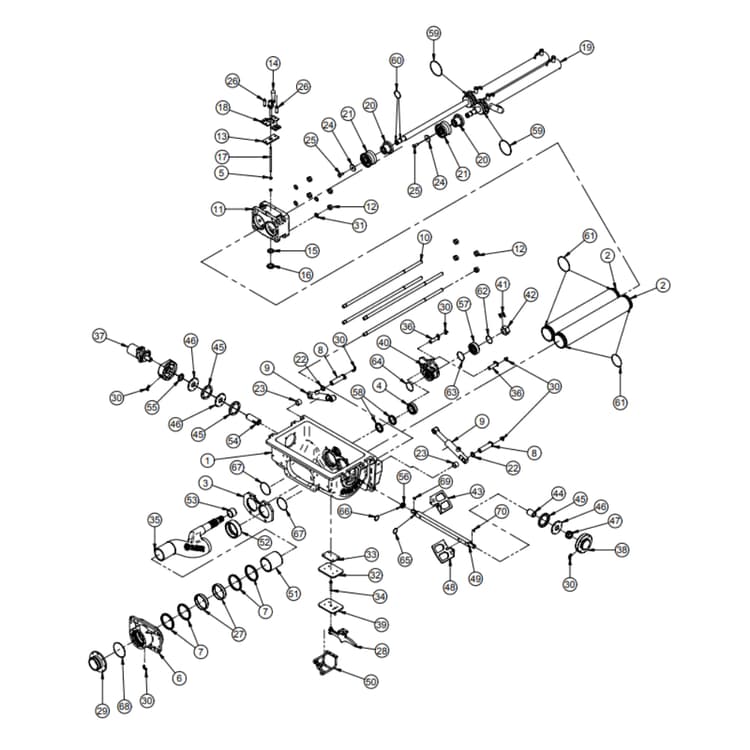

Booster 15 Cooling Tank

Name: Imer Booster 15 Concrete Pump Parts
Brand: imer usa
SKU: IMR-Booster15-Parent
Availability: InStock

Switch between sub-assemblies:

Total Price: $0.00

1
4382MER Imer Hopper4382MER
2
2143MER Imer Piston Cylinder Booster 152143MER
$
4,426
73
Suggested: 1
3
4210MER Imer Repair Part4210MER
$
3,338
70
Suggested: 1
4
2200MER Imer Spacer2200MER
$
435
83
Suggested: 1
5
20695MER Imer USA A7 Nut EA20695MER
$
15
17
Suggested: 1
6
4392MER Imer Flange Dis- Charge Side4392MER
7
4168MER Imer Seal4168MER
$
346
69
Suggested: 1
8
4434MER Imer Pin4434MER
9
4483MER Imer Cylinder4483MER
10
4436MER Imer Tie-Rod4436MER
11
4391MER Imer Cooling Tank4391MER
$
1,338
89
Suggested: 1
12
4422MER Imer Nut4422MER
13
4185MER Imer Support4185MER
$
70
71
Suggested: 1
14
4191MER Imer Mechanical lock for Booster4191MER
$
519
02
Suggested: 1
15
4403MER Imer Seal4403MER
$
48
68
Suggested: 1
16
4438MER Imer Cooling Plug4438MER
$
176
43
Suggested: 1
17
2178MER Imer THREADED ROD2178MER
$
97
78
Suggested: 1
18
2176MER Imer Support2176MER
$
124
83
Suggested: 1
19
4482MER Imer Pumping Cylinder4482MER
19
4489MER Imer Pumping Cylinder4489MER
$
4,204
54
Suggested: 1
20
4205MER Imer Sensor4205MER
$
331
56
Suggested: 1
21
2154MER Imer Wheel2154MER
$
692
84
Suggested: 1
22
4440MER Imer Spacer4440MER
$
54
48
Suggested: 1
23
4441MER Imer Spacer4441MER
$
59
67
Suggested: 1
24
4190MER Imer Washer4190MER
$
43
94
Suggested: 1
25
4038MER Imer Screw / Bolt4038MER
$
12
61
Suggested: 1
26
4206MER Imer Sensor Booster Cylinder4206MER
$
1,131
56
Suggested: 1
27
2151MER Imer Spacer Ring2151MER
$
326
46
Suggested: 1
28
4192MER Imer Closing Hopper for Booster4192MER
$
724
47
Suggested: 1
29
4455MER Imer Flange4455MER
29
4437MER Imer Flange4437MER
$
330
10
Suggested: 1
30
2040MER Imer CONNECTOR AIR2040MER
$
76
34
Suggested: 1
31
4445MER Imer Washer4445MER
$
15
17
Suggested: 1
32
4201MER Imer Gasket for Booster4201MER
$
72
01
Suggested: 1
33
4204MER Imer Gate for Booster4204MER
$
70
71
Suggested: 1
34
295MER Imer USA A2 BOLT-M240 / M480295MER
$
15
17
Suggested: 1
35
4374MER Imer Exhaust Pipe4374MER
$
1,904
00
Suggested: 1
36
4433MER Imer Piston Rod Pin4433MER
37
4381MER Imer Hydraulic Motor4381MER
$
2,070
41
Suggested: 1
38
1497MER Imer USA H4 FLANGE1497MER
$
347
37
Suggested: 1
39
4203MER Imer Closing Hopper for Booster4203MER
$
138
48
Suggested: 1
40
4398MER Imer Toothed Rod4398MER
$
833
92
Suggested: 1
41
4404MER Imer Nut Block4404MER
$
50
44
Suggested: 1
42
4421MER Imer Nut4421MER
$
123
46
Suggested: 1
43
2147MER Imer Paddle2147MER
$
130
16
Suggested: 1
44
1323MER Imer USA H4 / S300 TILTING BLIND SID1323MER
$
230
01
Suggested: 1
45
1078MER Imer USA H2 SEAL FLANGE1078MER
$
114
31
Suggested: 1
46
1026MER Imer USA S300 / H2 / H4 SEAL D431026MER
$
112
50
Suggested: 1
47
1133MER Imer USA H4 / S300 GREASING BUSH1133MER
$
134
60
Suggested: 1
48
2146MER Imer Paddle2146MER
$
121
85
Suggested: 1
49
4435MER Imer Hopper Shaft4435MER
$
348
95
Suggested: 1
50
4429MER Imer Grill4429MER
$
171
96
Suggested: 1
51
4167MER Imer Bushing4167MER
$
739
02
Suggested: 1
52
4373MER Imer Flange4373MER
$
948
21
Suggested: 1
53
2201MER Imer Spacer2201MER
$
218
22
Suggested: 1
54
1485MER Imer USA H4 / S300 ENGINE EXTENTION1485MER
$
458
29
Suggested: 1
55
462MER Imer USA H4 / S300 OIL SEAL462MER
$
19
89
Suggested: 1
56
4399MER Imer Ring4399MER
$
138
15
Suggested: 1
57
4439MER Imer Flange4439MER
$
299
86
Suggested: 1
58
2152MER Imer Seal2152MER
$
262
16
Suggested: 1
59
4198MER Imer O-Ring4198MER
$
15
17
Suggested: 1
60
4194MER Imer O-Ring4194MER
$
15
17
Suggested: 1
61
4199MER Imer Washer4199MER
$
15
17
Suggested: 1
62
4195MER Imer O-Ring4195MER
$
15
17
Suggested: 1
63
4196MER Imer O-Ring4196MER
$
15
17
Suggested: 1
64
4197MER Imer O-Ring4197MER
$
15
17
Suggested: 1
65
4427MER Imer O-Ring4427MER
$
15
17
Suggested: 1
66
4428MER Imer O-Ring4428MER
$
15
17
Suggested: 1
67
4208MER Imer O-Ring4208MER
$
15
17
Suggested: 1
68
4200MER Imer O-Ring4200MER
$
15
17
Suggested: 1
69
203MER Imer USA A11 KEY203MER
$
15
17
Suggested: 1
70
2106MER Imer Replacement Repair Item2106MER
$
15
17
Suggested: 1
71
4230MER Imer Seal4230MER
$
112
30
Suggested: 1
72
4233MER Imer O-Ring4233MER
$
15
17
Suggested: 1
